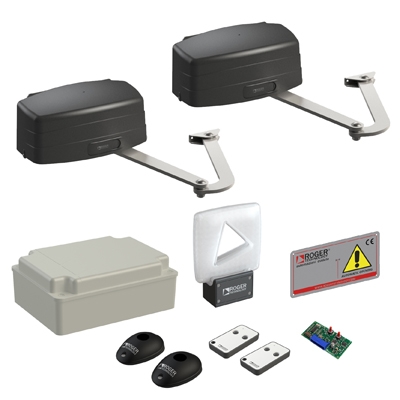

SET R23/373
SET 230V AC – ширина ворот до 3,5 м – с механическим концевым выключателем
| Power line supply: | 230V AC - 50Hz |
| Motor power supply: | 230V AC |
| Power rating: | 200W |
| Frequency of use: | 50% |
| Torque: | 400 N m |
| Operating temperature: | -20+55° C |
| Protection level: | IP43 |
| Reductor Type: | Irreversible |
| Manoeuvre speed: | 1,5 Rpm |
| Opening time at 90°: | 14 s |
| Motor thermal protection: | 150° C |
| Incorporated condenser: | 10 µF |
| Limit switch: | Microswitch in opening and closing |
| Encoder: | - |
| Maximum dimension product in mm (L x W x H): | 355 x 190 x 160 |
| Product weight packed (Kg): | 35,2 |
KT208
Plate for fixing to post R23 series.
Plate for fixing to post R23 series.
KT218
Gate pull bracket for series articulated.
Gate pull bracket for series articulated.
LT302
Arms short for articulated motor.
Arms short for articulated motor.
Compostion Set:
2 boxes - Size in Cm: Lenght: 40 - Widht.:20 - Heigth: 20
1 box - Size in Cm: Lenght: 47 - Widht.:23.5 - Heigth: 16
